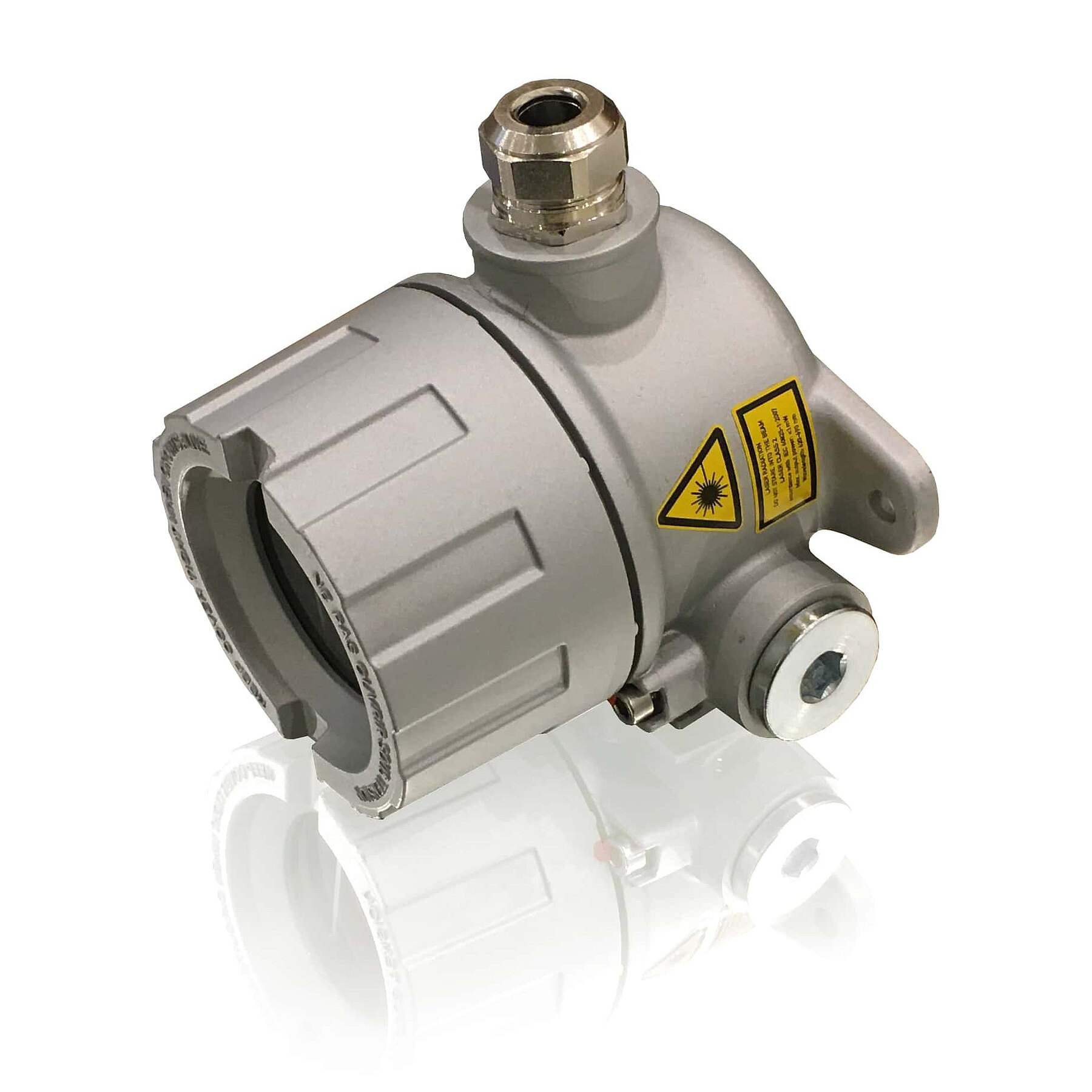

Highlights
- Laser triangulation based distance measurement
- Reproducibility < 10µm
- Mounting directly in Ex zones 1, 2, 21, 22
- Measurement by optical power limitation in Ex zones 0 and 20
- Working range from 50 mm to 150 mm
- Output through digital interface RS422 and configurable analogue interface 4-20mA
- Protection class IP65
Applications
- Level measurements on lacquers, solvent-based liquids
- Unbalance checks on shafts
- Cap inspection on filling machines for spray cans, bottles etc.
- Thickness and diameter measurements
- Quality control
Applications can be found in heavy industry, power generation, automotive industry, pharmaceutical industry, chemical industry, paint industry, etc.

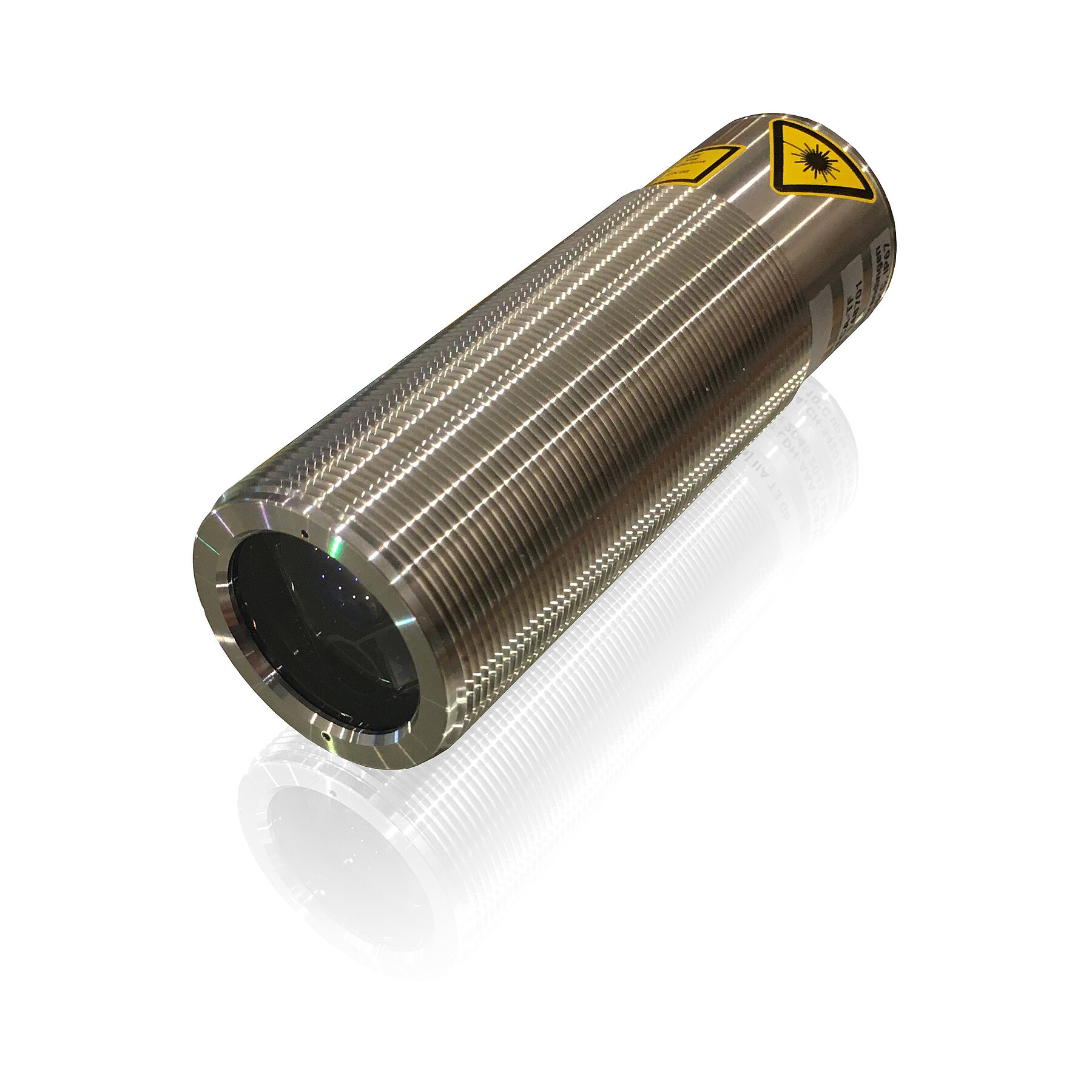

Highlights
- Light time-of-flight-based distance measurement (laser distance measurement or laser time-of-flight measurement)
- Can be used directly in Ex zones 1, 2, 21, 22, may radiate into Ex zones 0 and 20
- Distance meter with large measuring range from 50 mm to 30,000 mm distance
- Displacement meter with 1mm resolution via RS-485
- Length measurement also via configurable analogue interface 4-20mA
- Complies with laser class 2 with red laser (635nm)
- In explosion-proof M42 stainless steel housing
Attention further development!
- Simple and customer-friendly parameterisation options
- lens heating to prevent condensation on the optics
- Intermittent and continuous operation possible
Applications:
- Positioning of plant components
- Collision protection
- Level measurements
- Distance, length and height measurements
Applications can be found wherever precise measurements are required in hazardous areas, even over long distances, e.g. in the automotive industry, pharmaceutical industry, chemical industry, biogas and methane gas industry, waste water and sewage technology, etc.

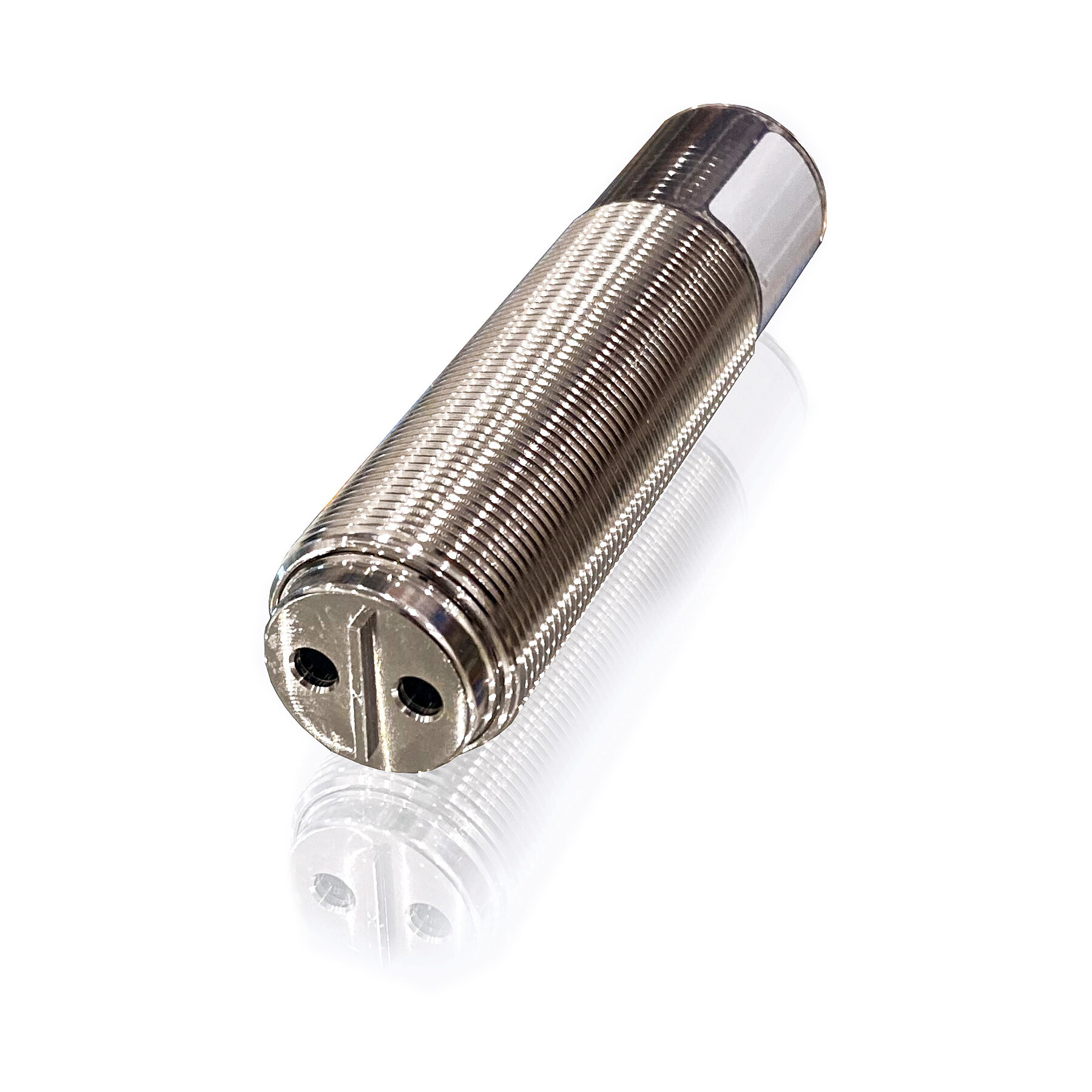

Highlights
- Infrared light 890nm with a measuring range from 100 mm to 1000 mm
- Precise and centimetre-accurate time-of-flight measurement (TOF principle)
- Versions with switching function and analogue output 4-20 mA
- Works independently of the reflectance of the object to be measured
- Explosion-proof, robust and compact M30 metal housing in flameproof enclosure Ex "d
- Approved for operation in Ex zones 1, 2, 21, 22 (gas and dust Ex)
- Protection class IP 67
Applications
- Distance, length and height measurements up to 1000 mm
