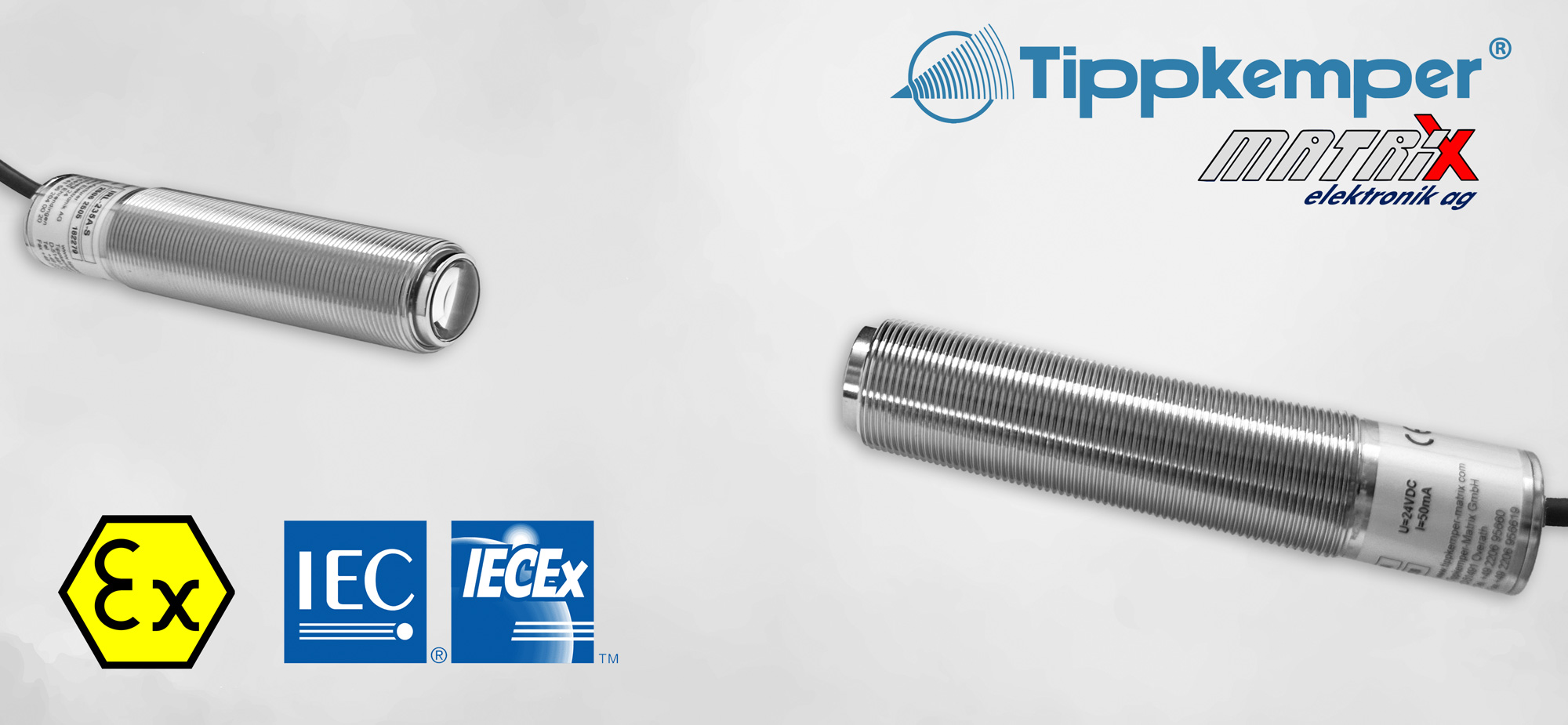

ILO-235.-S/E(-VA)(-DI) is a high-performance throughbeam light barrier designed for industrial applications in hazardous environments. With ATEX certification, advanced features like contamination indication (VA) and disable input (DI), and a robust construction, it provides reliable and precise object detection in demanding conditions.

Highlights

• ATEX Certified: Complies with II 2(1)G Ex d [op is Ga] IIC T6 Gb, II 2(1)D Ex tb [op is Da] IIIB T100°C Db IP67 standards
• Optical Radiation: Safely operates in Ex zones 1, 2, 21, and 22 while installed outside the hazardous area
• Long Detection Range: Up to 200 meters for flexible applications
• Dual Wavelength Technology: Infrared (870 nm) and visible red light (623 nm) for high penetration capability
• Contamination Indication (VA): Alerts users to dirty optics for timely maintenance
• Disable Input (DI): Enables multiplex operation and targeted control
• Detection Range: Up to 200 meters
• Minimum Detectable Object Size: From 22 mm (consider reflection effects)
• Reaction Time: Fast response with adjustable delay settings
• Supply Voltage: 24 VDC ±15%
• Protection Class: IP67 for durability in harsh environments

Applications

• Hazardous Area Monitoring: Ensures safety in Ex zones with reliable detection
• Automation Systems: Enhances machine and process control in industrial settings
• Material Flow Optimization: Precise object detection for logistics and conveyor systems
