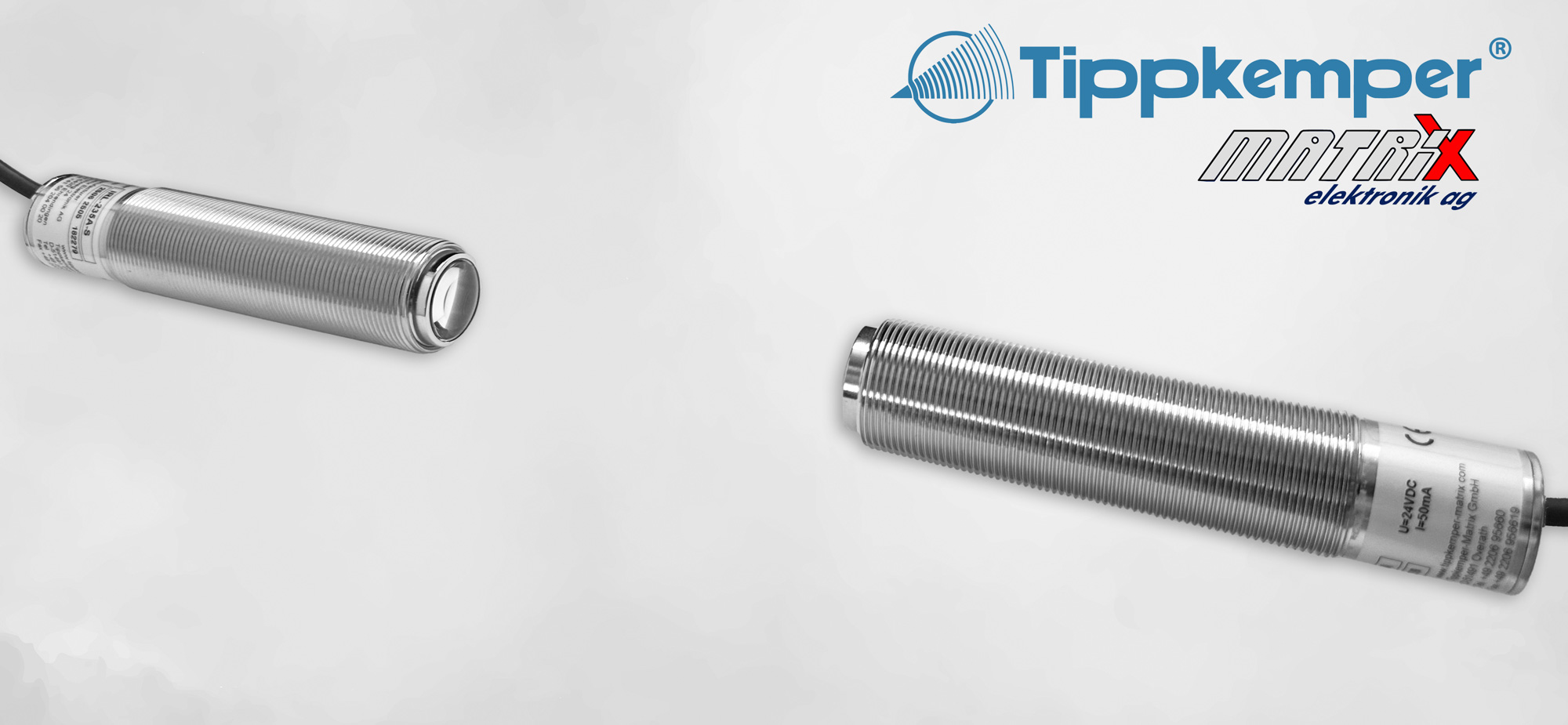

IRL-235.-S/E is a robust and precise throughbeam light barrier from Tippkemper-Matrix, designed for demanding industrial applications. With its high penetration capability, long detection range, and advanced alignment features, it ensures reliable performance even in challenging environments.

Highlights

• High Penetration Capability: Dual-wavelength technology (infrared 870 nm and visible red light 623 nm) for reliable detection in dusty or contaminated areas
• Long Detection Range: Up to 200 meters for flexible applications
• Advanced Alignment: Integrated visible red light and status indicator in the receiver for easy setup
• Optional Features: Contamination indication output (VA) and disable input (DI) for enhanced functionality
• Robust Design: IP67-rated housing resistant to shock, vibration, and harsh industrial conditions
• Light Source: Infrared (870 nm) and visible red light (623 nm)
• Response Time: 30 ms (standard), 20 ms (HS version)
• Minimum Detectable Object Size: From 22 mm (consider reflection effects)
• Power Supply: 24 VDC ±15%
• Output: Push-Pull, short-circuit proof, load capacity up to 100 mA
• Operating Temperature: -20°C to +50°C

Applications

• Automation Systems: Enhancing machine safety and process efficiency
• Material Flow Monitoring: Precise detection in conveyor systems and logistics
• Industrial Environments: Reliable performance in dusty or contaminated conditions
